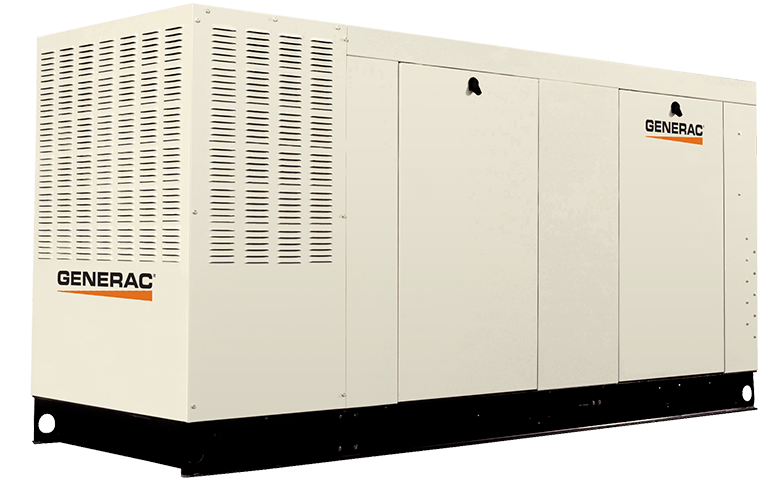

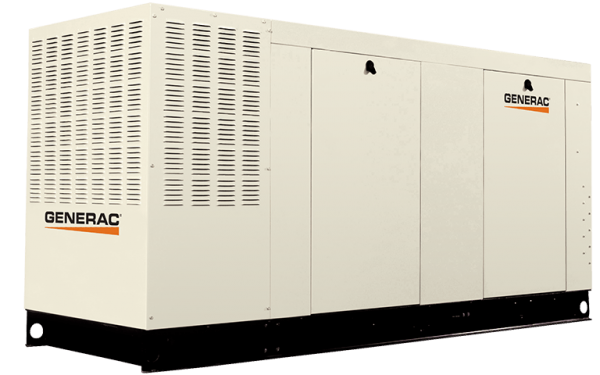

QT SERIES 150KW HOME BACKUP GENERATOR

  • Whisper-Test
  • Ultra-quiet operation during weekly exercises
  • Reduces sound output to 61 dB(A) from 65 dB(A) @ 7 meters
  • Automotive-Style Engine
  • Quiet 6.8L Generac V-10 engine liquid-cooled
  • Aluminum Weather-Protected Enclosure
  • Shelters generator from weather and reduces exterior noise
  • Insulation lowers sound levels by 2-3 decibels
  • Hour Meter
  • Monitors for service and maintenance intervals
  • Automatic Shutdown
  • High coolant temp, low coolant, low oil pressure and overspeed
SKU: QT150 Categories: , , Tags: , ,

Higher power nodes for large applications.

Single and three phase output in a variety of voltages.

Liquid cooled engines available in low and high-speed options.

Aluminum, all-weather enclosure option provides substantial protection from the elements. Aluminum’s corrosion resistance prolongs the life of your generator. Recommended for salt-air, coastal communities. Sturdy galvanneal steel enclosures are coated with a durable powder-coat finish for added weather protection.

Continuous fuel choice of LP or natural gas.

Nexus Digital Controller with two lines, trilingual text, easily shows generator status, run time and history.

Quiet-Test™ Mode
Thanks to Quiet-Test, your Commercial Series home standby generator runs its weekly self-test at a lower RPM.

Wireless remote monitoring is an available option.





Natual Gas - Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
136000 Watts
Fuel Type
Natural Gas
NG Power Capacity
136000 Watts
NG Fuel Consumption @ 50% Load
1070 ft³/hr
NG Fuel Consumption @ 100% Load
2061 ft³/hr
LP Fuel Consumption @ 100% Load
22.57 gallons/hr
Rated Amps
567 Amps
Decibel Rating @ 7m
66 Test (79 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
2492 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
UPC
696471609202
Transfer Switch Circuits
Circuit Breaker Size
700 Amps
LG Fuel - Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
144000 Watts
Fuel Type
LP
LP Power Capacity
144000 Watts
NG Fuel Consumption @ 100% Load
2061 ft³/hr
LP Fuel Consumption @ 50% Load
11.72 gallons/hr
LP Fuel Consumption @ 100% Load
22.57 gallons/hr
Rated Amps
600 Amps
Decibel Rating @ 7m
66 Test (79 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 6.8 L V-10
Starting System
12v Auto Start
CC
6800 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
2492 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
116 Inches
Product Width
37 Inches
Product Height
55 Inches
UPC
696471609226
Transfer Switch Circuits
Circuit Breaker Size
700 Amps
