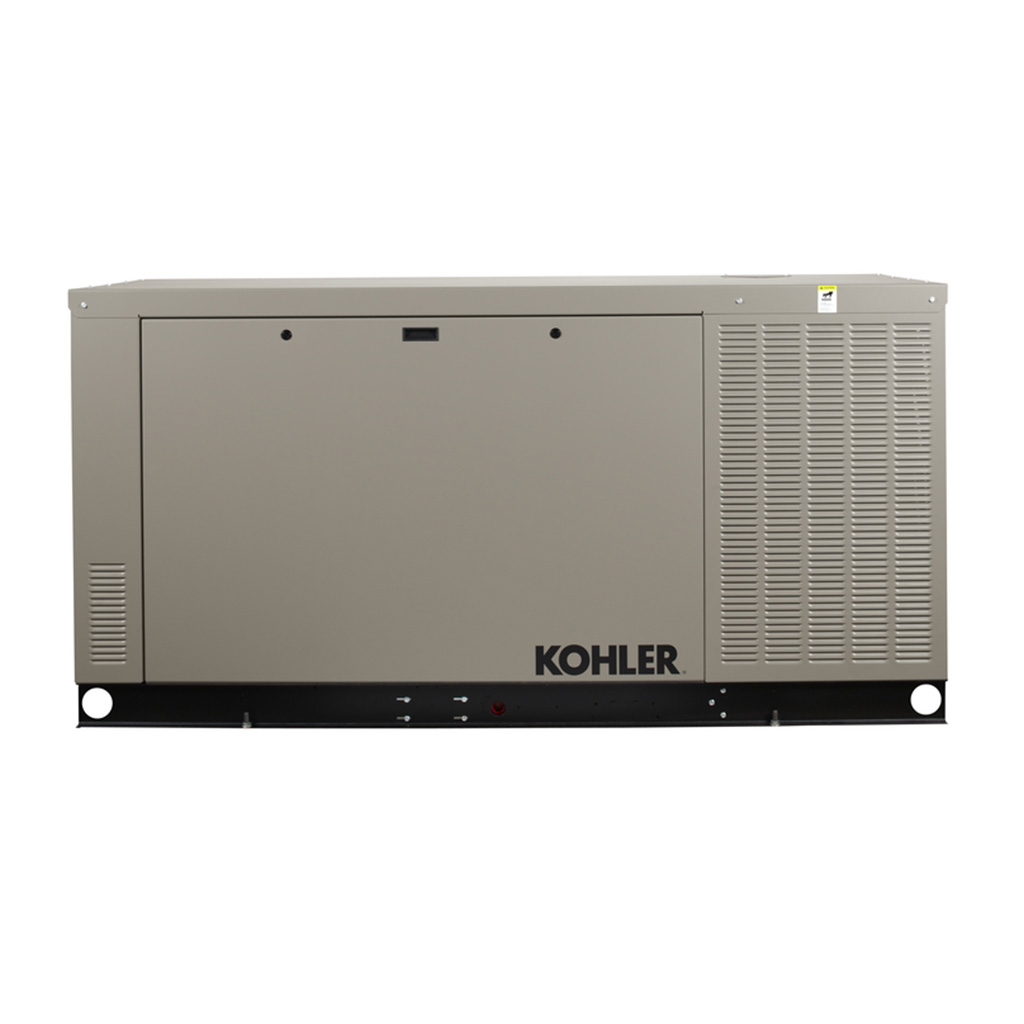

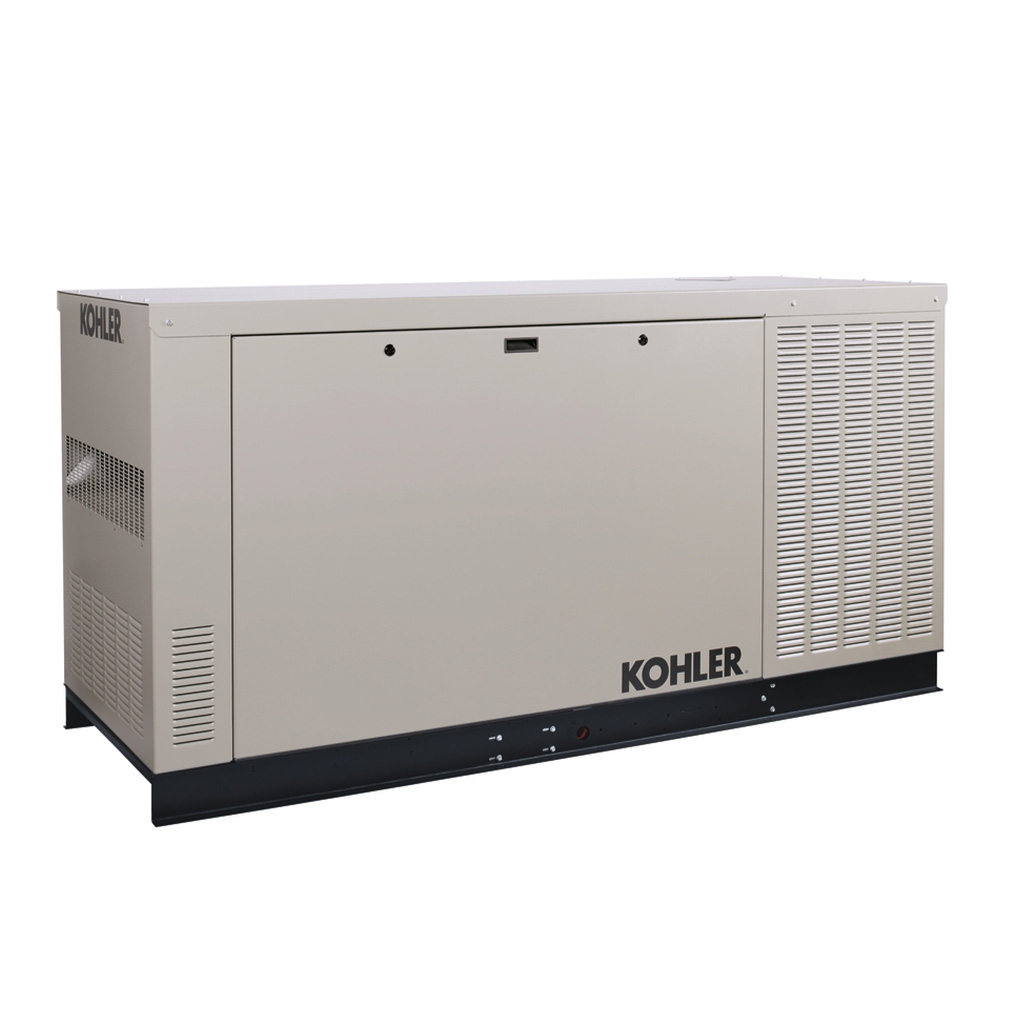

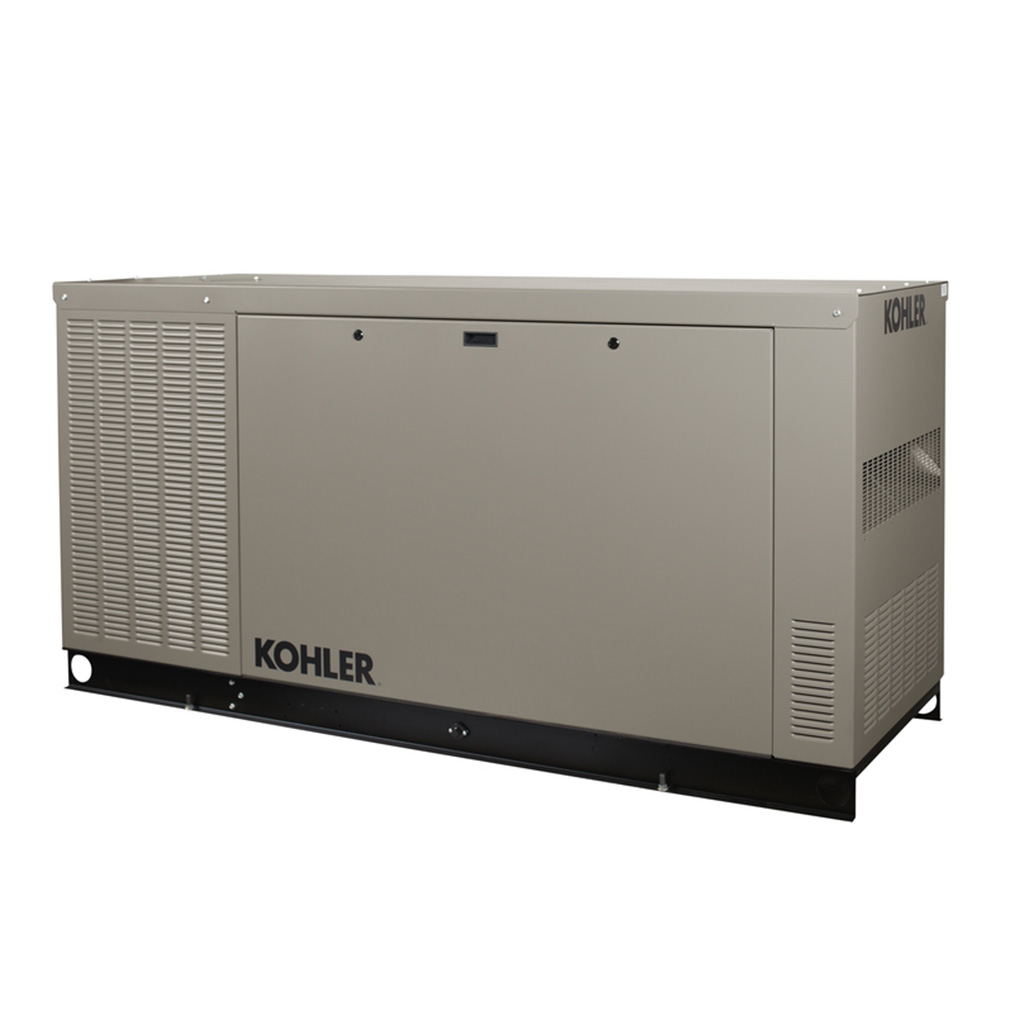

Kohler 38kW Generator RCL
Reliable power for large residential or small business needs. When the power goes out during a bad storm or power failure, your 38 kW KOHLER generator with industrial-grade engine keeps your home or business – from central air to sump pump to personal computers – up and running.*
Powerful
In just 10 seconds, your KOHLER generator automatically restores power and keeps you connected to the things you love to do.
Smart
You get steady, high-quality power that protects your electronics from damage related to low-quality power sources.
Premium warranty
We’ve got you covered with 5-year, 2,000-hour protection, and an aluminum enclosure that’s built to last.
Quiet
Neighborhood-friendly, with weekly exercise volume that’s similar to a normal conversation.
THE POWER YOU NEED
Powerful operation on either natural gas or liquid propane (LPG); the 38RCL provides 158 amps on natural gas or LPG, while the 48RCL provides 200 amps on natural gas or LPG
Extraordinary peak motor-starting capacity, with 38RCL at 95kVA at 240V and 48RCL at 113kVA at 240V
Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics and appliances
Powered by General Motors Vortec automotive-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm
Compatible with optional OnCue Plus and OnCue Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
THE CONVENIENCES YOU EXPECT
RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions
Extremely quiet operation with sound at 61dBA at full speed and 58 dBA at exercise (normal conversation level)
Corrosion-resistant aluminum enclosure is standard
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
Streamlined installation, including simple terminal block for easy field connections
Rated kW LP | 38 kW |
---|---|
Rated kW NG | 38 kW |
Amps LP | 158 Amps |
Amps NG | 158 Amps |
Peak Motor Starting kVA @240 V | 95 kVa |
Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
Displacement | 4.3 L (262 cu. in.) |
Horsepower | 75 HP |
Enclosure Material | Aluminum |
Sound Output During Weekly Exercise | 57 dB(A) |
Sound Output During Full-speed Operation | 61 dB(A) |
Response Time | 10 Seconds |
Warranty | Premium five-year limited warranty |
Country of Origin | US |
Certifications/Listings | CSA|EPA|UL 2200 |
Automatic Transfer Switch Included | No |
Remote Monitoring Available | Yes |
Off Grid Warranty | N/A |
Off Grid / Utility Backup | Utility Backup |
Weight | 1740 lbs. |
Alternator Type | 4-Pole, Rotating Field |
Fuel Consumption on NG at 50% load? | 350 cfh |
Fuel Consumption on LP at 50% load? | 145 cfh |
Controller | RDC2 Controller |
Cylinder Arrangement | V-6 |
Dimensions | 2280mm x 836mm x 1147mm (89.8 in. x 32.9 in. x 45.2 in.) |
Engine Manufacturer/Description | General Motors |
Engine Model | Industrial Powertrain Vortec 4.3L |
Engine/Alternator RPM | 1800 RPM |
Fuel Type | Natural Gas|LPG |
Frequency | 60 Hz|50 Hz |
Phase | Single Phase or Three Phase |
Voltage @ 60 Hz | 120/240 |
Digital Voltage Regulation | 1.0% |
Built in Mounting Pad | No |
