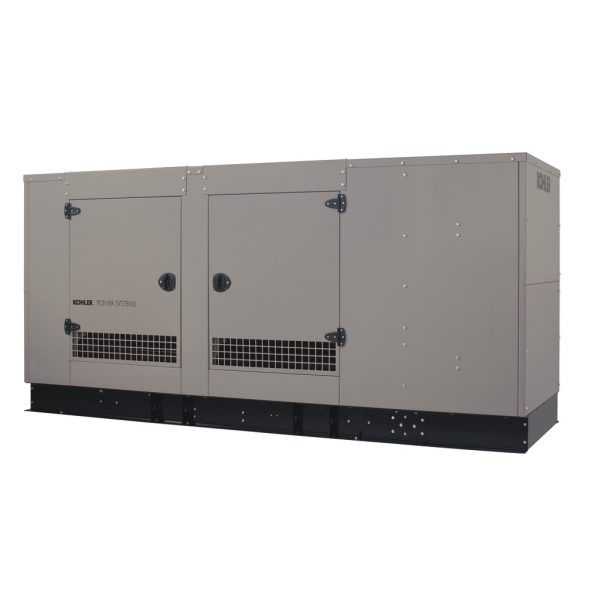

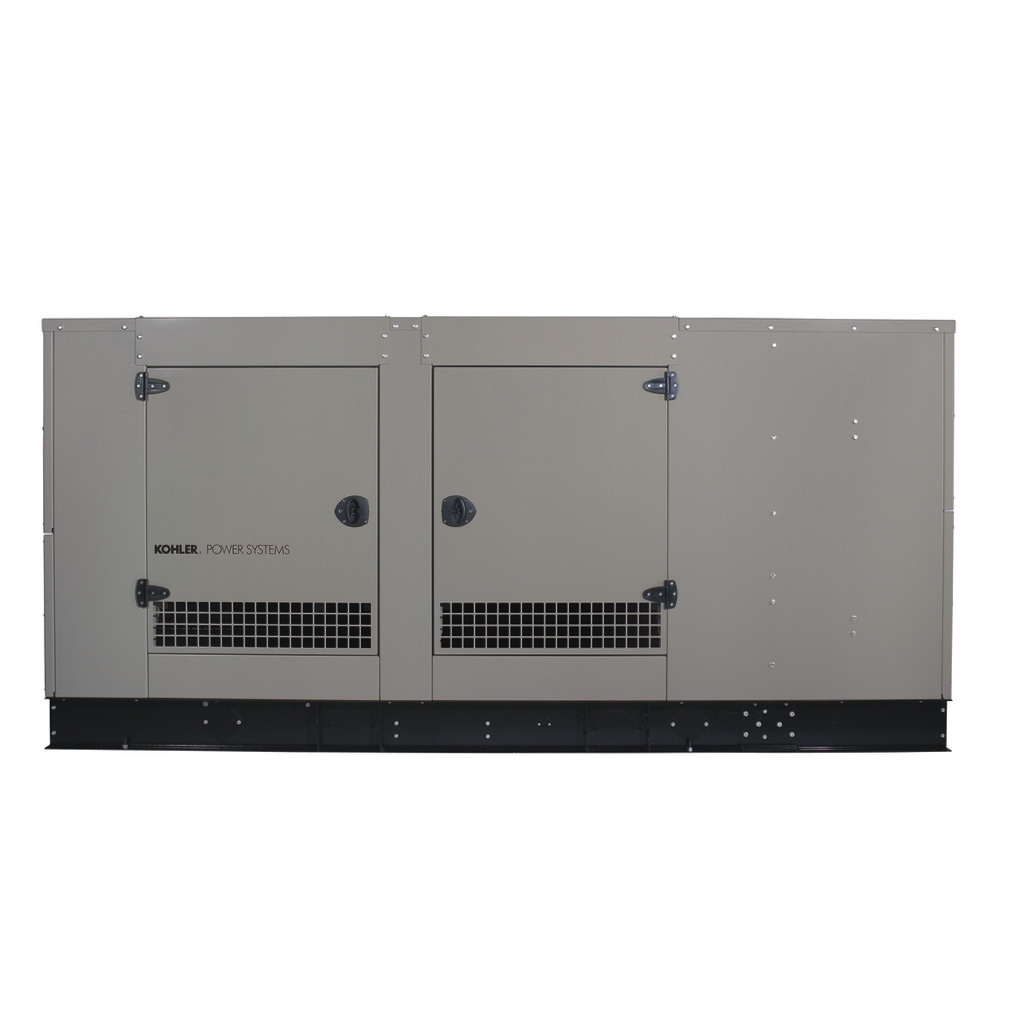

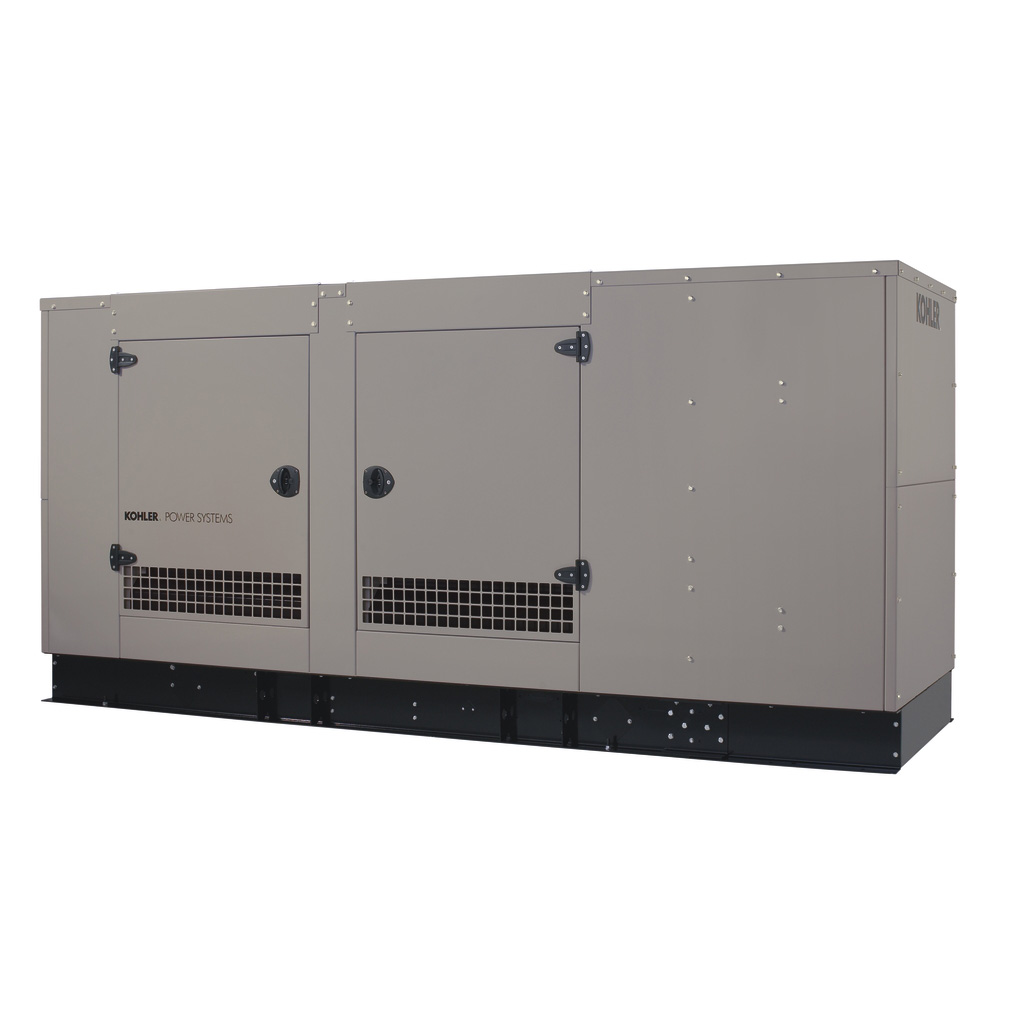

Kohler 125kW Generator ERESC
Reliable power for very large residential or small business needs. Built to weather the storms, our largest natural gas/liquid propane generators with industrial-grade engines keep your family comfortable and your business running when a utility failure or storm knocks out power.
Powerful
In just 10 seconds, your KOHLER generator automatically powers everything, keeping you connected to the things you love to do.*
Smart
You get steady, high-quality power that protects your electronics from damage related to low-quality power sources.
Advanced
The Decision-Maker 3000 controller with patented software is compatible with optional accessories that let you monitor your system remotely through your PC.
Exterior options
Choose the optional corrosion-resistant aluminum enclosure or standard steel enclosure.
THE POWER YOU NEED
A popular choice for industrial applications
Excellent peak motor-starting capacity: 440kVA at 240V
Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics
Powered by General Motors Vortec automotive-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm
THE CONVENIENCES YOU EXPECT
Decision-Maker 3000 controller provides advanced control, system monitoring and system diagnostics with remote-monitoring capability
Quiet, neighborhood-friendly operation with sound similar to a typical central air conditioner
Standard steel enclosure with automotive-grade paint
Optional corrosion-resistant aluminum enclosure
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
| Rated kW LP | 105 kW |
|---|---|
| Rated kW NG | 125 kW |
| Amps LP | 438 Amps |
| Amps NG | 521 Amps |
| Peak Motor Starting kVA @240 V | 440 kVa |
| Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement | 8.8 L (537 cu. in.) |
| Horsepower | NG 195 HP, LP 162 HP |
| Enclosure Material | Aluminum|Steel |
| Sound Output During Weekly Exercise | 73 dB(A) |
| Sound Output During Full-speed Operation | 73 dB(A) |
| Response Time | 10 Seconds |
| Warranty | Five-year extended warranty |
| Country of Origin | US |
| Certifications/Listings | UL 2200|CSA|EPA |
| Automatic Transfer Switch Included | No |
| Remote Monitoring Available | Yes |
| Off Grid Warranty | N/A |
| Off Grid / Utility Backup | Utility Backup |
| Weight | 3509 lbs. |
| Alternator Type | Brushless, Permanent-Magnet |
| Fuel Consumption on NG at 50% load? | 984 cfh |
| Fuel Consumption on LP at 50% load? | 354 cfh |
| Controller | Decision-Maker 3000 |
| Cylinder Arrangement | V-8 |
| Dimensions | 3526mm x 1153mm x 1724 mm (138.8 in. x 45.4 in. x 67.9 in.) |
| Engine Manufacturer/Description | General Motors |
| Engine Model | Industrial Powertrain Vortec 8.8L |
| Engine/Alternator RPM | 1800 RPM |
| Fuel Type | LPG|Natural Gas |
| Frequency | 60 Hz |
| Phase | Single Phase or Three Phase |
| Voltage @ 60 Hz | 120/240 |
| Digital Voltage Regulation | 0.5% |
| Built in Mounting Pad | No |
