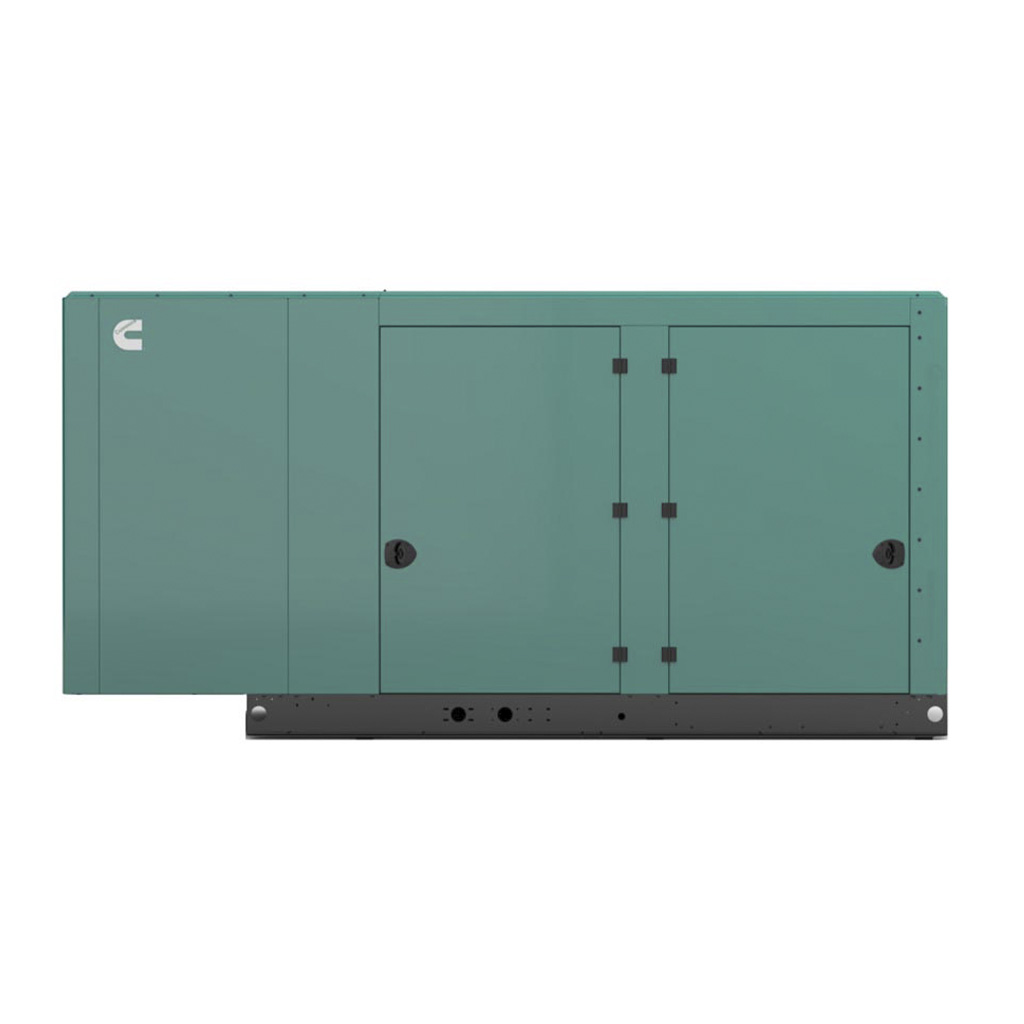

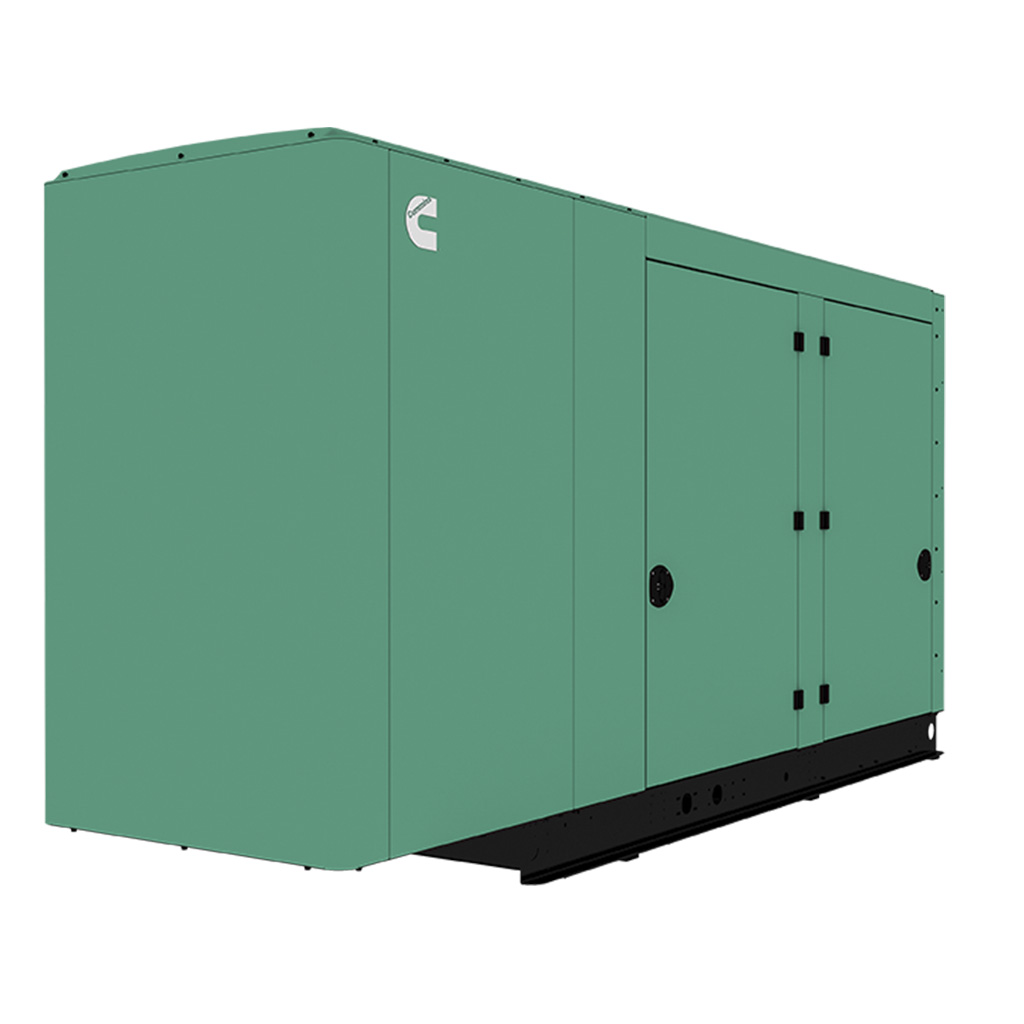

Cummins Power Quiet Connect 125kW Natural Gas Liquid Cooled Standby Generator Three Phase | RS125

  • Cummins Power Generation Quiet Connect RS125 Natural Gas Standby 1800 RPM Engine
  • Select from these Three Phase Voltages, 120/208, 120/240, 277480
  • Robust Product Design – Can operate under extreme environmental conditions including cold weather
  • Generator is tested and certified per the latest EPA, UL and IBC Seismic standards
  • Flexible Exercise Mode – As little as 2 minutes every 6 months
  • Advanced Enclosure Design – Specially designed to deliver the quietest generator of its kind
  • Aluminum material plus durable powder coat pain for the best anti-corrosion performance
  • Manufactures Limited 2 Year Warranty
SKU: RS125 Categories: , Tags: , ,

ROBUST PRODUCT DESIGN AND TESTING – The generator is designed to operate under extreme environmental conditions including cold weather starts at as low as -40 oF. The generator is tested and certified per the latest EPA, UL and IBC Seismic standards and is capable of meeting NFPA110 requirements when equipped with the necessary accessories and properly installed.

FLEXIBLE EXERCISE MODE – The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer’s preference – as little as 2 minutes every 6 months – reducing unnecessary fuel consumption, emissions and noise.

ADVANCED ENCLOSURE DESIGN – The aesthetically appealing enclosure incorporates special designs that deliver the quietest generator of its kind. Aluminum material plus durable powder coat paint provides the best anti-corrosion performance. The generator set enclosure has been evaluated to withstand 180 MPH wind loads in accordance with ASCE7-10. The intelligent design has removable panels and service doors to provide easy access for service and maintenance.

SELF DIAGNOSTICS AND EASY SERVICE – The generator is equipped with Cummins PowerCommand electronic control to provide industry-leading self diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time.

Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
100000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
100000 Watts
LP Power Capacity
100000 Watts
NG Fuel Consumption @ 50% Load
805.4 ft³/hr
NG Fuel Consumption @ 100% Load
1317.7 ft³/hr
LP Fuel Consumption @ 50% Load
8.57 gallons/hr
LP Fuel Consumption @ 100% Load
14.25 gallons/hr
Rated Amps
417 Amps
Decibel Rating @ 7m
71 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (550 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
5900 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
2830 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
118.7 Inches
Product Width
40.0 Inches
Product Height
58.3 Inches
Additional Model Numbers
C100 N6, A054F867
